OptiTrack Unity Plugin

Overview

The OptiTrack Unity3D Plugin allows you to stream real-time Rigid Body, skeleton, and HMD tracking data from Motive into Unity. Using the streamed data, objects and characters in the scene can be animated. The plugin contents are distributed in unitypackage format, and you can simply load this file into Unity projects to import its contents. Once imported, included C# scripts can be used for instantiating a client origin and receiving the tracking data. This article focuses on how to set up and use the plugin.

Versions Requirements

• Unity Version: 2017.2 / 2017.1 or above. (2020.3+ recommended)

• Visual Studio 2019 or latest Visual C++ Redistributable

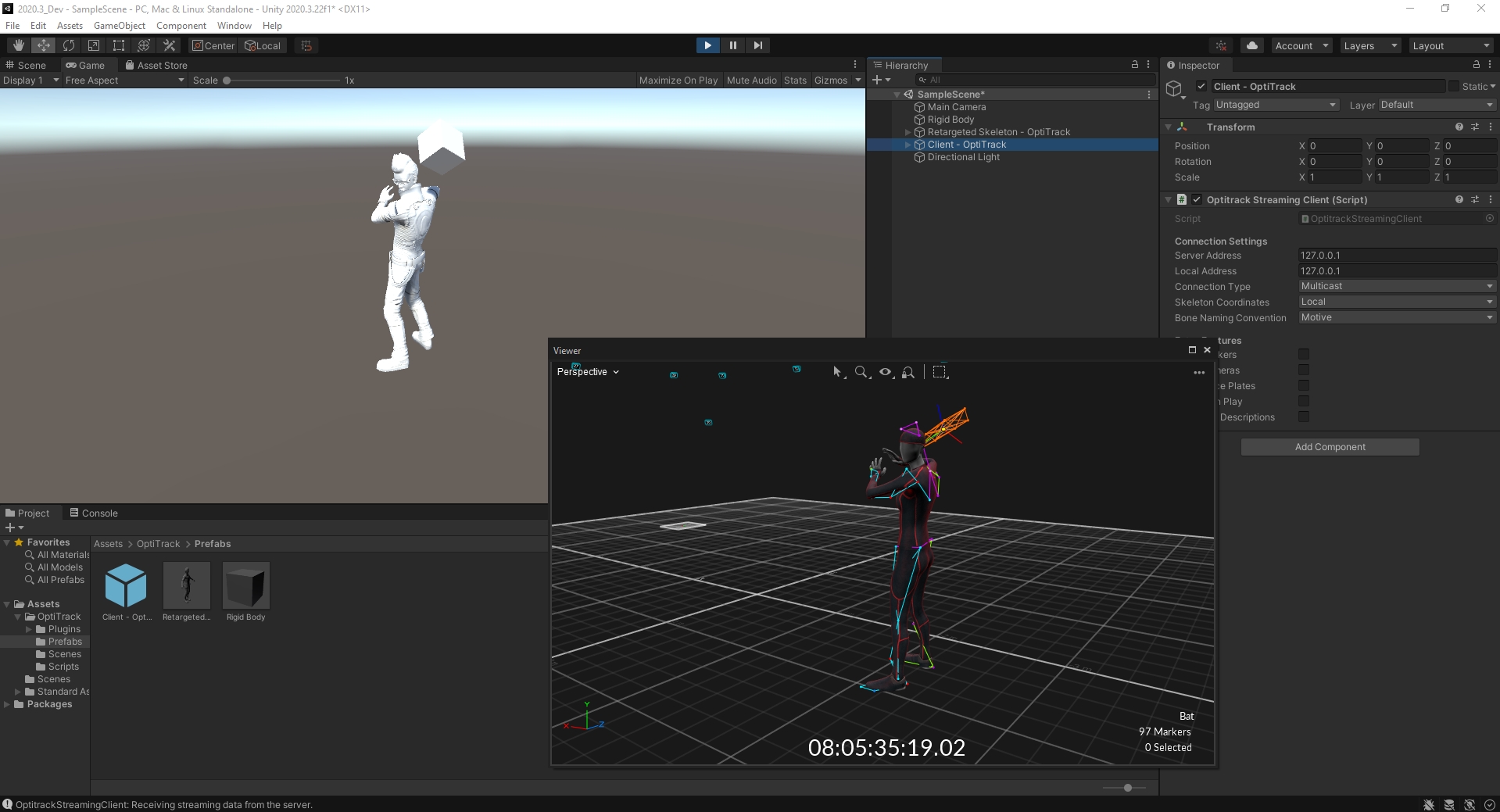

Streaming tracking data into Unity.

Notes on HMD Integration

• The HTC VIVE, VIVE Pro, VIVE Pro 2, Valve Index, and HP Reverb HMDs can be integrated through the OptiTrack OpenVR Driver.

Motive Setup (Server)

Streaming Setup

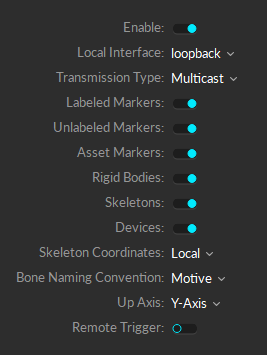

Data Streaming settings in Motive.

From Motive, the tracking data can be streamed in real-time either from a live capture (Live Mode) or recorded data (Edit Mode). The streaming settings are configured by modifying the Streaming Settings. NatNet streaming must enabled and the correct IP address must be set.

Streaming in Motive

Open the Streaming Settings in Motive and configure the settings below:

• Enable - Turn on the Enable setting at the top of the NatNet section.

• Local Interface - Choose the desired IP network address from this dropdown to stream data over.

• Transmission Type - Typically you will want to set this to Unicast since it subscribes only to the data you wish to use and normally uses less network bandwidth. This is especially advised if streaming data over WiFi.

• (Optional) If using Multicast, then enable/disable the desired data types. For tracking HMDs, disabling the Marker streaming is advised.

Additional Tips

• In order to stream data from Edit mode, a capture recording must be playing back in Motive.

• For best results, it is advised to run Motive and Unreal Engine separately on different computers, so that they are not competing for processing resources.

• When streaming the data over a WiFi network, Unicast transmission must be used.

Unity Setup (Client)

Unity plugin files.

Import Plugin Package

While in the Unity project, double-click on the plugin unitypackage file and import the plugin assets into the project. When the package has been successfully imported, the following contents will be available within the project:

Plugin Contents

Folder	Content Description
Assets/OptiTrack	All of the Unity plugin contents are included in this folder.
Assets/OptiTrack/Scripts	This is the folder that you will mainly use. It contains plugin C# script components that can be imported into Unity objects for receiving streamed data.
Assets/OptiTrack/Plugins	This folder contains the plugin libraries and header files.
Assets/OptiTrack/Prefabs	This is the easiest place to get started. This folder contains premade objects for setting up a streaming client, tracking a Rigid Body, and retargeting a skeleton.
Assets/OptiTrack/Scenes	This folder contains sample Unity scene that includes pre-configured client, Rigid Body, and skeleton objects.

Setting Up the Client Object

In order to receive tracking data from a server application (e.g. Motive), a client object must be set up. The OptitrackStreamingClient.cs script can be attached to any object to stream data relative to that object. Typically, this script is attached to an empty object or loaded in using the "Client - OptiTrack" prefab object in the Assets/Optitrack/Prefabs folder.

• [Motive] In the Streaming Settings, configure the desired connection settings.
• [Unity] Under the Prefabs folder, import the "Client - OptiTrack" prefab object into the scene, or attach OptitrackStreamingClient.cs script onto an empty object.

• [Unity] In the streaming Client object, configure the connection settings to match the streaming settings in Motive.

• Server Address - IP address of the PC that the server application (Motive) is running on.

• Local Address - Local IP Address of the PC that the client application (Unity) is running on. (Typically, this looks similar to the Server Address except maybe the last digits.)

• Connection Type - Must match Motive. Unicast is recommended.

• [Unity] If you wish to receive tracking data from more than one server instances, you may create multiple objects with the client script attached.

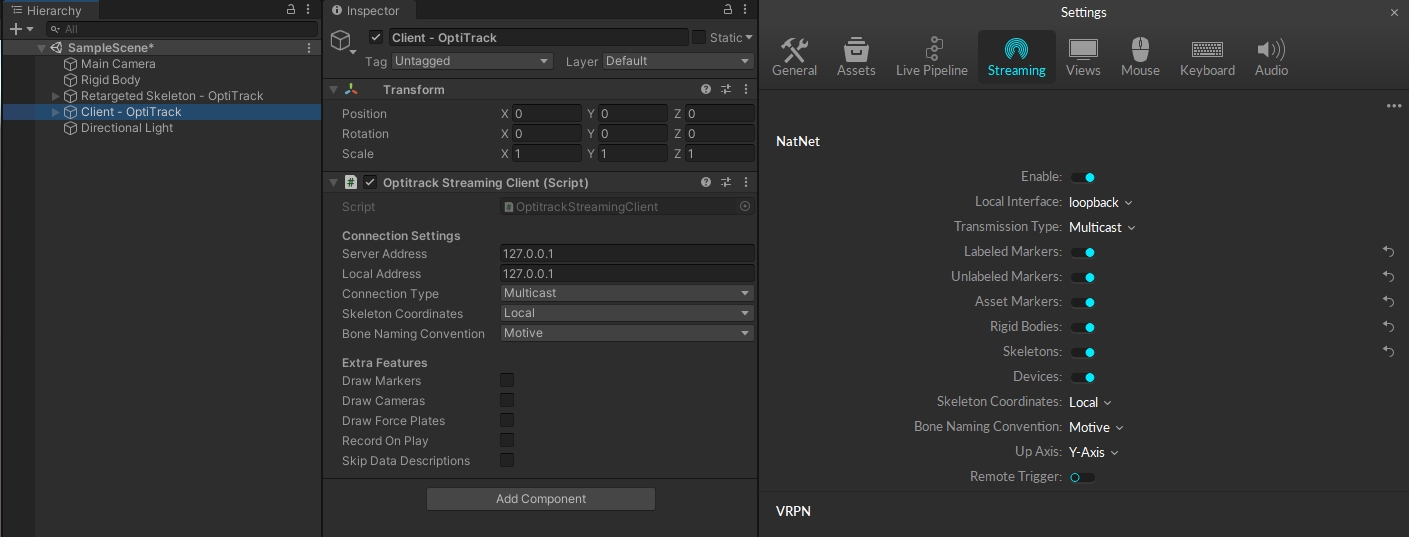

Client object in Unity and the corresponding Motive data streaming network settings. Click image to enlarge.

Position Data in Unity

Although it is not strictly necessary, you may find it helpful to organize your tracked objects as children of the streaming Client object. This will allow you to adjust the position of the Client object to adjust the position of all streamed objects relative to the Client object.

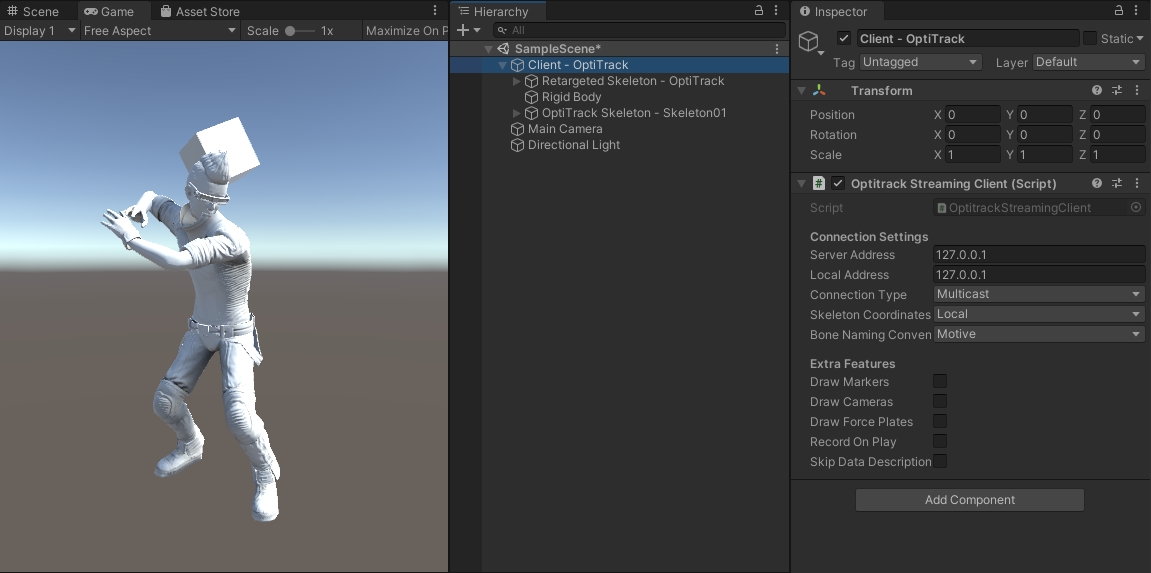

Position data in unity. Click image to enlarge.

Animating Rigid Body

1. [Unity] On an object that you wish to animate, attach the OpitrackRigidBody.cs script.

2. [Unity] In the Streaming Client entry, link the Client object in which the OptitrackStreamingClient.cs script is attached. By default, it searches for an existing client instance, but this must be specified when there are more than one streaming client objects.

3. [Unity] For the Rigid Body ID entry, input the streaming ID of corresponding Rigid Body asset in Motive. The streaming ID can be found, and changed, under the Rigid Body properties.
4. [Motive] Make sure Motive is tracking and streaming the data.

5. [Unity] Play the scene. The linked object will be animated according to the associated Rigid Body movement in Motive.

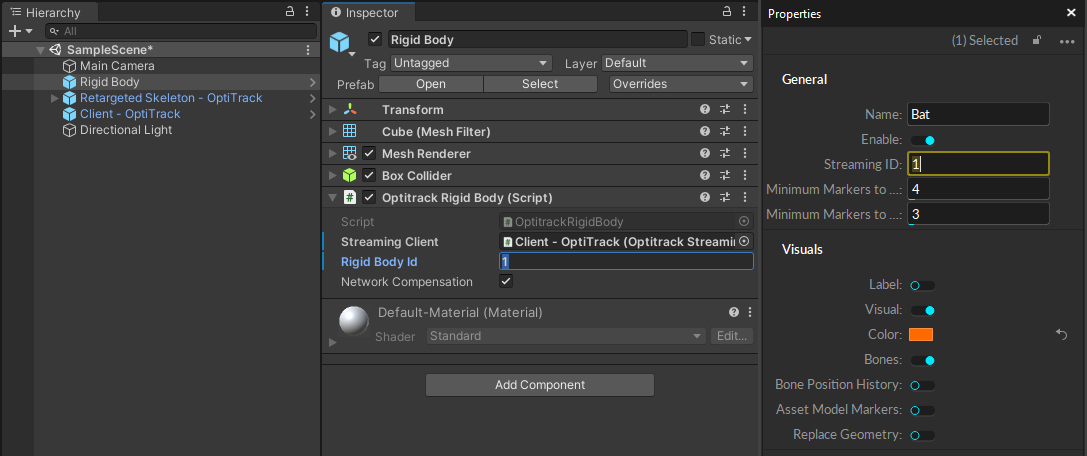

OptiTrack Rigid Body configuration along with the Rigid Body properties in Motive. Configured Streaming ID must match the Rigid Body ID designated from the client side. Click image to enlarge.

Animating Skeleton

By integrating with Unity's animation system, Mecanim, the Unity3D plugin allows Motive to stream full body skeleton data. The skeleton tracking data from Motive is streamed out as hierarchical bone segment orientations, and this data is fed into the Unity's Mecanim system which allows animating characters with different proportions.

Note: At the time of writing, Mecanim does not support explicit goals for inverse kinematics end-effectors when using real-time retargeting. In addition, you may observe a difference in the overall scale of the position data between the retargeted skeletal animations and streamed Rigid Bodies. These two limitations may lead to inconsistencies with actors interacting with Rigid Body props, and will hopefully be addressed in a future version of the integration.

Steps

1. [Unity] On Unity characters, attach OptitrackSkeletonAnimator.cs script as one of its components.

2. [Unity] For the Streaming Client entry, link the Client object in which the OptitrackStreamingClient.cs script is attached. By default, it searches for an existing client instance, but this must be specified when there are more than one streaming client objects.

3. [Unity] Enter Skeleton Asset Name which is assigned in Motive

4. [Unity] For the Destination Avatar entry, link to the character's avatar component.

5. [Motive] Make sure Motive is tracking and streaming the data.

6. [Unity] Play the scene. When everything is set up properly, the linked avatar in Unity will be animated according to the streamed skeleton in Motive. The position of the actor will be in its reference position as explained above.

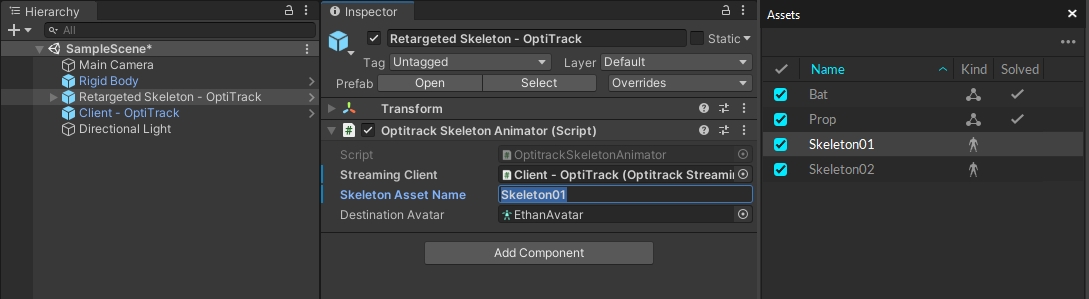

OptiTrack Skeleton Animator script configuration from a character in Unity.

Animating Markers, Etc.

1. [Unity] On the OptiTrack Streaming instance, enable the Draw Markers, "Draw Cameras", or "Draw Force Plates" setting(s).

2. [Motive] Make sure that marker streaming is enabled in Motive if you wish to visualize markers.

3. [Unity] Make sure the streaming setting is set up correctly, and play the scene.

4. [Unity] Each marker, camera, or force plate will be drawn in the scene, as shown in the screenshot below. (Note: Only markers will animate.)\

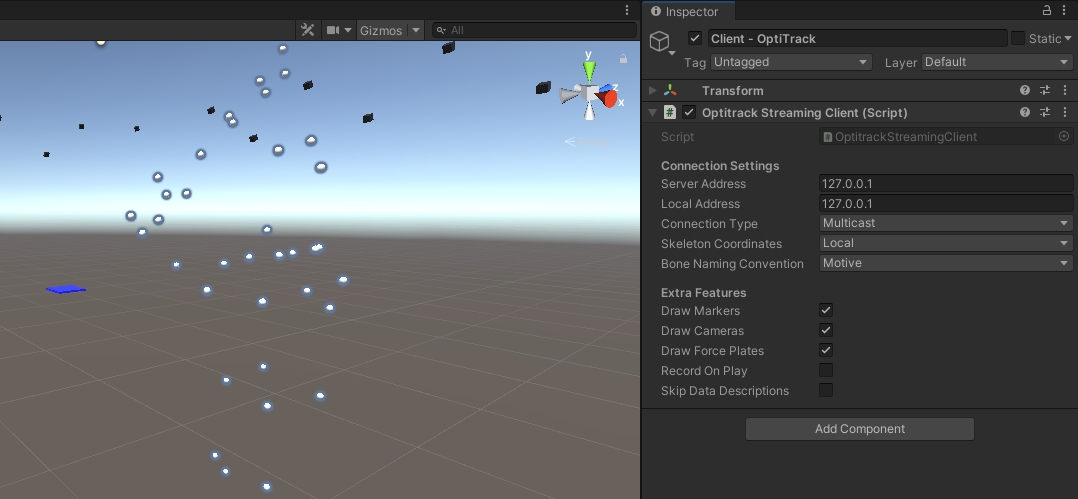

Skeleton labeled markers drawn in Unity scene.

Integrating HMDs

---

OptiTrack motion capture systems can be used to track head mounted displays (HMD) and integrate the tracking data into Unity for unique VR applications. For instructions on integrating HMD tracking data into Unreal Engine, please refer to the corresponding page Unity: HMD Setup.

Supported HMDs

At the time of writing, the following HMDs are supported:

• HTC VIVE

• HTC VIVE Pro

• HTC VIVE Pro 2

• Valve Index

• HP Reverb

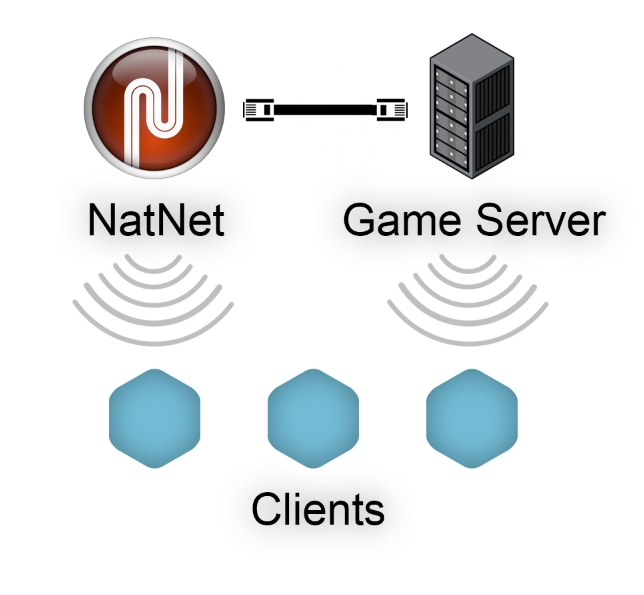

Wireless Multiplayer Setup

When setting up multiplayer games with wireless clients, it is more beneficial for each client to make direct connection to both the tracking-server (Motive) and the game-server, rather than rebroadcasting the streamed tracking data through the game-server. Then, any of the game related actions that interacts with the tracking data can be processed on the game-server, and this server can send out the corresponding updates to the wireless clients. This allows the wireless clients to only receive both the tracking data or updates without having to send back any information; in other words, minimizing the number of data transfers needed. If wireless clients are sending data there will be a minimum of two transfers on the wireless network, and each transfer of data through wireless network is at risk of latency or lost packets.
