Baseline + Active Fingers (57)
Last updated
Last updated
This Marker Set can be used with Active Tags in conjunction with the Core Marker Set.

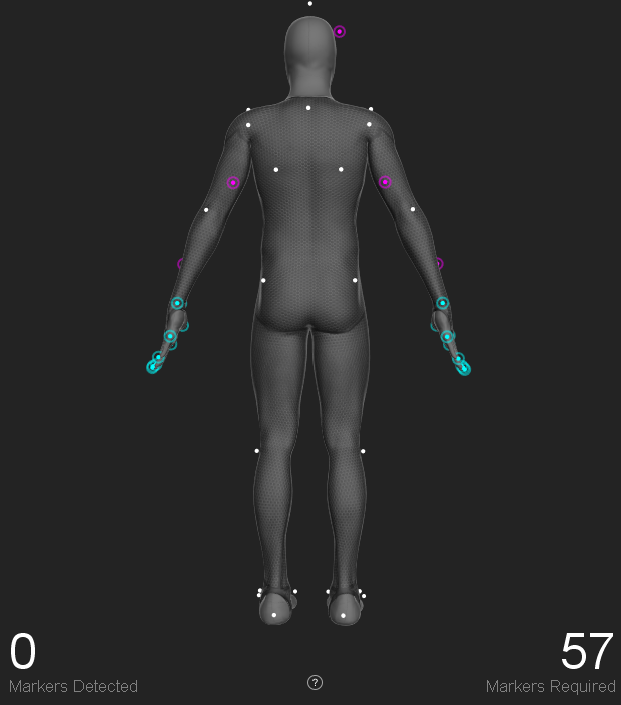

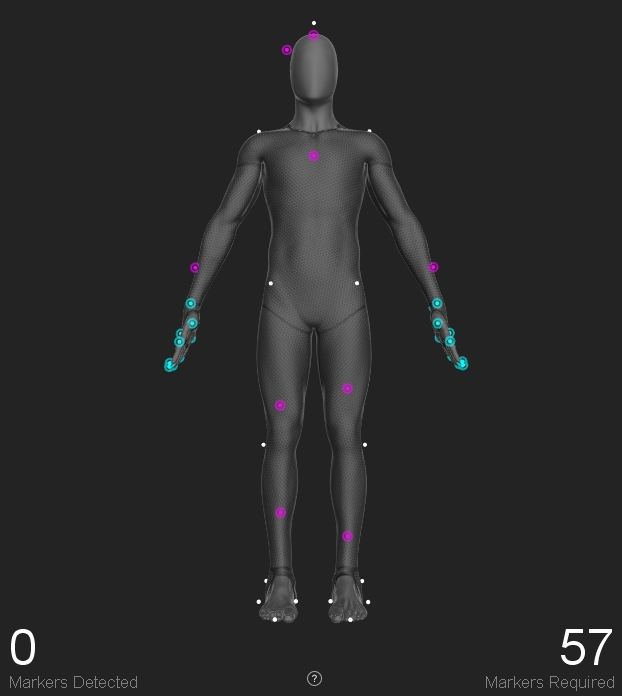

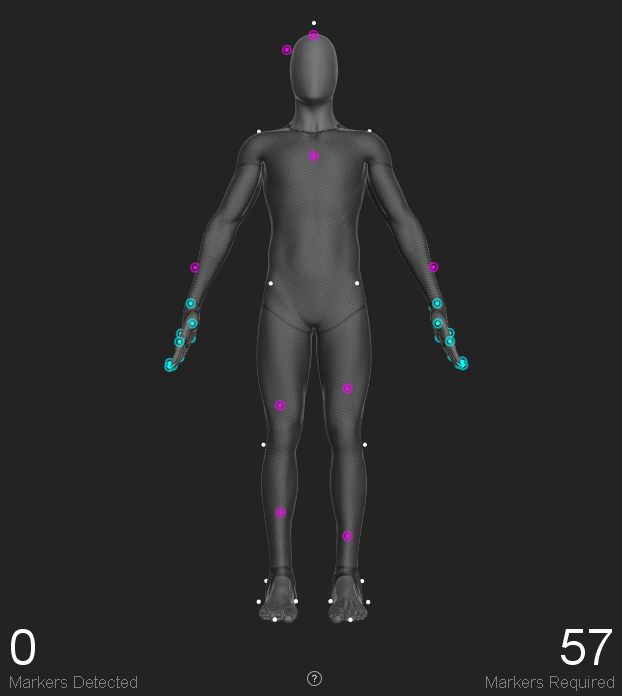

The Baseline + Active Fingers Marker Set has the same placement for the body as the Baseline Marker Set, however, there are additional Active markers on the wrist, hand, and fingers.

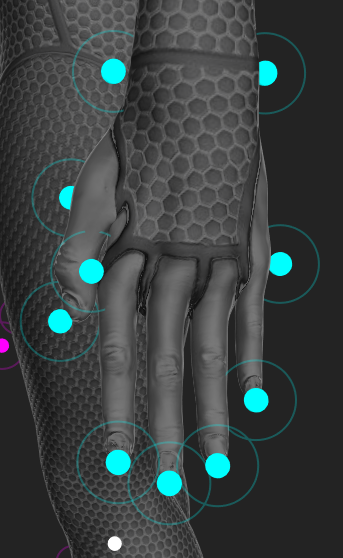

The Active Finger Markerset uses a total of 10 markers per hand, 8 active with 2 passive markers attached at the wrist.
LWristOut RWristOut
Fore Arm / Hand
Place the marker on the outside (lateral side) of the wrist axis. (distal end of the radius bone). Note that the wrist axis is not always located on the protruding bone but 1-2 cm more towards the hand.
LWristIn RWristIn
Fore Arm / Hand
Place the marker on the inner prominence (medial side) of the wrist axis (distal end of the ulnar bone).
LHandOut RHandOut
Hand
Place the marker slightly below the pinky knuckle. More specifically, between distal end of the fifth and fourth metacarpal bones.
LHandIn RHandIn
Hand
Place the marker slightly below the forefinger knuckle. More specifically, between distal end of the second metacarpal bones.
LThumb RThumb
Finger
Place the marker on the thumb on the 1st metacarpophalangeal joint
LFingers RFingers
Finger
Place markers on the tips of each finger and thumb
