Core + Active Fingers (62)

Overview

This Marker Set can be used with Active Tags in conjunction with the Core Marker Set.

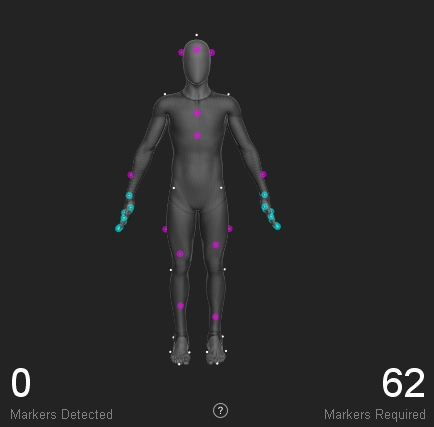

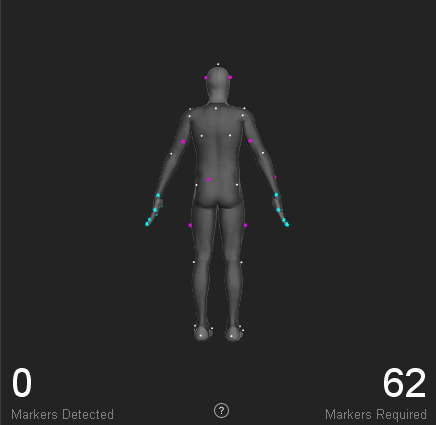

Full Body Markers

The Core + Active Fingers Marker Set has the same placement for the body as the Core Marker Set, however, there are additional Active markers on the hand and fingers.

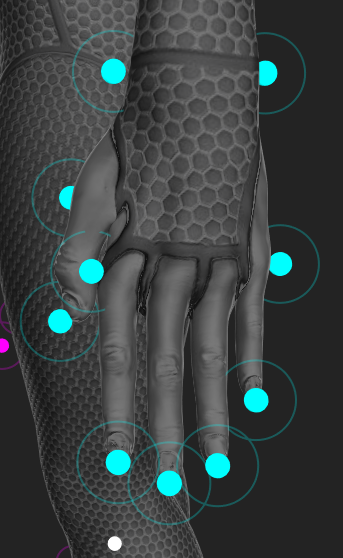

Hand + Finger Markers

The Active Finger Markerset uses a total of 10 markers per hand, 8 active with 2 passive markers attached at the wrist.

Label	Related Segment	Description
LWristOut RWristOut	Fore Arm / Hand	Place the marker on the outside (lateral side) of the wrist axis. (distal end of the radius bone). Note that the wrist axis is not always located on the protruding bone but 1-2 cm more towards the hand.
LWristIn RWristIn	Fore Arm / Hand	Place the marker on the inner prominence (medial side) of the wrist axis (distal end of the ulnar bone).
LHandOut RHandOut	Hand	Place the marker slightly below the pinky knuckle. More specifically, between distal end of the fifth and fourth metacarpal bones.
LHandIn RHandIn	Hand	Place the marker slightly below the forefinger knuckle. More specifically, between distal end of the second metacarpal bones.
LThumb RThumb	Finger	Place the marker on the thumb on the 1st metacarpophalangeal joint
LFingers RFingers	Finger	Place markers on the tips of each finger and thumb
