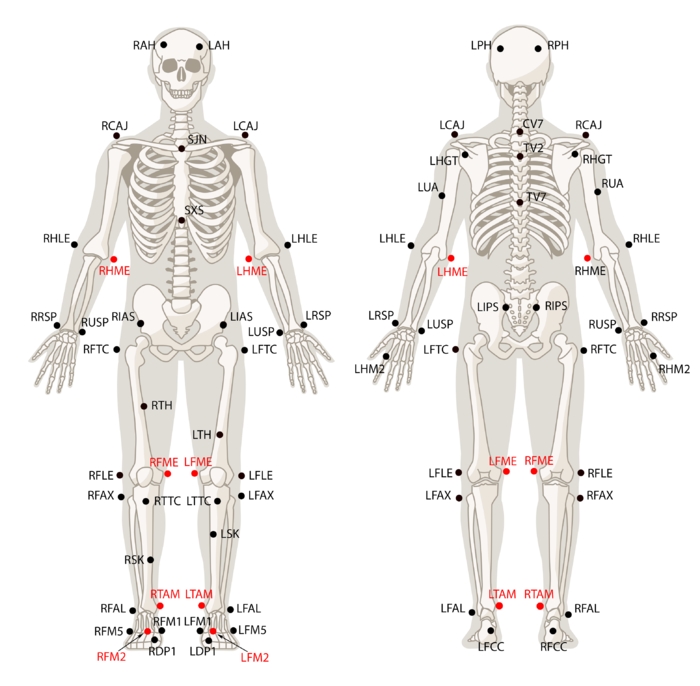

Conventional Lower (16)

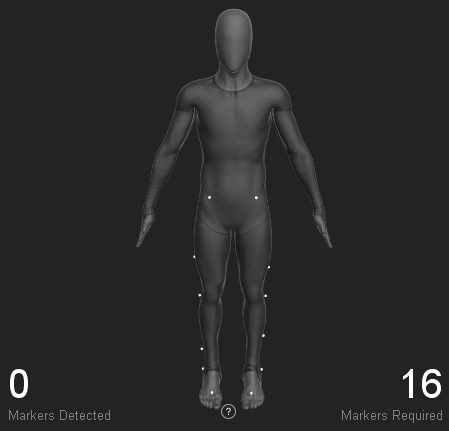

Conventional Lower Front

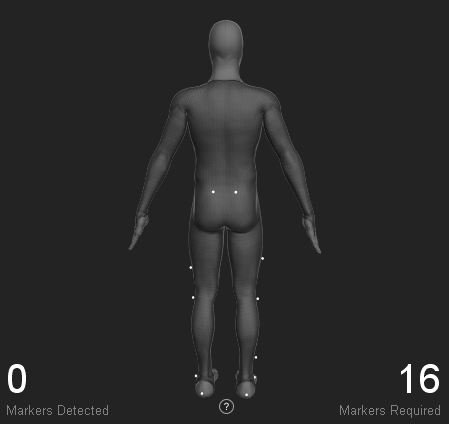

Conventional Lower Back
Waist Markers
Labels
Related Segment
Anatomical Location
Additional Description
LIAS (PSISl[2]​[1])
RIAS (PSIS[2]​[1])
Pelvis
Left Iliac Anterior Spine
Right Iliac Anterior Spine
Place the marker on the protruding bones located on the left and right side of the pelvis front.
LIPS (ASIS[2]​[1])
RIPS (ASIS[2]​[1])
Pelvis
Left Iliac Posterior Spine
Right Iliac Posterior Spine
Place each marker on the two dimples which can be palpated near the spine right above the hips.
Note that the waist markers are the key markers in modeling the pelvis bone, which is the major segment governing the other subsequent Skeleton segments.
Lower Extremity Markers
Labels
Related Segment
Anatomical Location
Placement Description
LFLE (LE[2])
RFLE (LE[2])
Upper Leg
Left Femur Lateral Epicondyle
Right Femur Lateral Epicondyle
Place the marker on the lateral prominence of the knee joint axis. More specifically, the marker should be placed on the femur epicondyle. You may need to ask the subject to flex and extend the knee few times to locate the axis.
LTH
RTH
Upper Leg
Left Thigh
Right Thigh
Place the markers at the front center of the thigh near the midline. This marker is placed for distinguishing left and right side of the Skeleton. For best results, slightly offset the height of right and left marker to introduce an asymmetry.
LSK
RSK
Upper Leg
Left Superior Knee
Right Superior Knee
Place the markers on the shin bone near the midline of the lower leg. This marker is placed for distinguishing left and right side of the Skeleton. For best results, slightly offset the height of right and left marker to introduce an asymmetry.
LTTC (TT[2])
RTTC (TT[2])
Lower Leg
Left Tibial Tubercle
Right Tibial Tubercle
Place the marker about 2-3 cm below the knee cap bone. This marker should be placed on the most anterior point of the tibial tuberosity.
The joint center of the knee and the ankle is modeled at the midpoint of the lateral and medial joint markers (FLE/FME and FAL/TAM). Assuming that center of the femoral head aligns with the center of the acetabulum, its virtual location is modeled using markers on the pelvis segment (posterior and anterior iliac spine markers). The lower extremity segments are modeled along these three virtual locations.
Foot Markers
Labels
Related Segment
Anatomical Location
Placement Description
LFAL(LM[2])
RFAL
Lower Leg/Foot
Left Fibula Ankle Lateral
Right Fibula Ankle Lateral
Place the maker on the lateral side of the ankle axis; on the lateral prominence of the lateral malleolus bone.
LFM2* (SM[2])
RFM2*
Foot
Left Foot Second Metatarsal
Right Foot Second Metatarsal
Place the marker on the dorsal aspect of the second metatarsal bone.
LFCC (CA[2])
RFCC
Foot
Left Foot Calcaneus
Right Foot Calcaneus
Place the marker on center of the heel, where the Achilles tendon attaches to the calcneous bone.
References
1.Leardini, A., Biagi, F., Merlo, A., Belvedere, C., Benedetti, M.G., 2011. Multi-segment trunk kinematics during locomotion and elementary exercises. Clin. Biomech. 26, 562-571.
2.Leardini, A., Sawacha, Z., Paolini, G., Ingrosso, S., Nativo, R., Benedetti, M.G., 2007. A new anatomically based protocol for gait analysis in children. Gait Posture 26. 560-571.

Labels	Related Segment	Anatomical Location	Additional Description
LIAS (PSISl[2][1]) RIAS (PSIS[2][1])	Pelvis	Left Iliac Anterior Spine Right Iliac Anterior Spine	Place the marker on the protruding bones located on the left and right side of the pelvis front.
LIPS (ASIS[2][1]) RIPS (ASIS[2][1])	Pelvis	Left Iliac Posterior Spine Right Iliac Posterior Spine	Place each marker on the two dimples which can be palpated near the spine right above the hips.

Labels	Related Segment	Anatomical Location	Placement Description
LFLE (LE[2]) RFLE (LE[2])	Upper Leg	Left Femur Lateral Epicondyle Right Femur Lateral Epicondyle	Place the marker on the lateral prominence of the knee joint axis. More specifically, the marker should be placed on the femur epicondyle. You may need to ask the subject to flex and extend the knee few times to locate the axis.
LTH RTH	Upper Leg	Left Thigh Right Thigh	Place the markers at the front center of the thigh near the midline. This marker is placed for distinguishing left and right side of the Skeleton. For best results, slightly offset the height of right and left marker to introduce an asymmetry.
LSK RSK	Upper Leg	Left Superior Knee Right Superior Knee	Place the markers on the shin bone near the midline of the lower leg. This marker is placed for distinguishing left and right side of the Skeleton. For best results, slightly offset the height of right and left marker to introduce an asymmetry.
LTTC (TT[2]) RTTC (TT[2])	Lower Leg	Left Tibial Tubercle Right Tibial Tubercle	Place the marker about 2-3 cm below the knee cap bone. This marker should be placed on the most anterior point of the tibial tuberosity.

Labels	Related Segment	Anatomical Location	Placement Description
LFAL(LM[2]) RFAL	Lower Leg/Foot	Left Fibula Ankle Lateral Right Fibula Ankle Lateral	Place the maker on the lateral side of the ankle axis; on the lateral prominence of the lateral malleolus bone.
LFM2* (SM[2]) RFM2*	Foot	Left Foot Second Metatarsal Right Foot Second Metatarsal	Place the marker on the dorsal aspect of the second metatarsal bone.
LFCC (CA[2]) RFCC	Foot	Left Foot Calcaneus Right Foot Calcaneus	Place the marker on center of the heel, where the Achilles tendon attaches to the calcneous bone.
