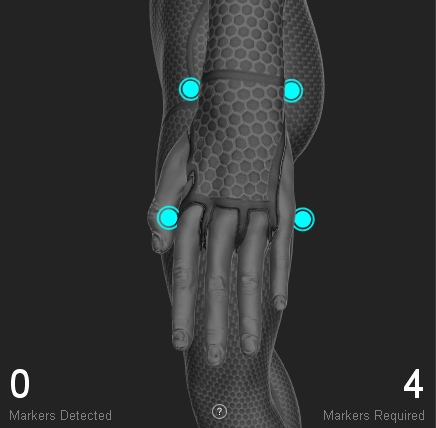

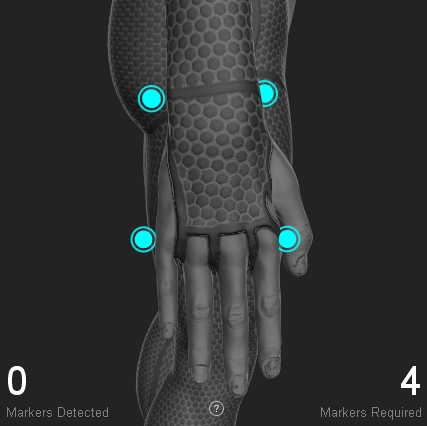

Left/Right Hand (4) Active
Hand + Finger Markers
| Label | Related Segment | Description |
|---|---|---|
LWristOut RWristOut | Fore Arm / Hand | Place the marker on the outside (lateral side) of the wrist axis. (distal end of the radius bone). Note that the wrist axis is not always located on the protruding bone but 1-2 cm more towards the hand. |
LWristIn RWristIn | Fore Arm / Hand | Place the marker on the inner prominence (medial side) of the wrist axis (distal end of the ulnar bone). |
LHandOut RHandOut | Hand | Place the marker slightly below the pinky knuckle. More specifically, between distal end of the fifth and fourth metacarpal bones. |
LHandIn RHandIn | Hand | Place the marker slightly below the forefinger knuckle. More specifically, between distal end of the second metacarpal bones. |
