Data Export: FBX

An overview of the data export options for FBX.

PreviousData Export: CSVNextData Export: TRC

Last updated 1 month ago

Was this helpful?

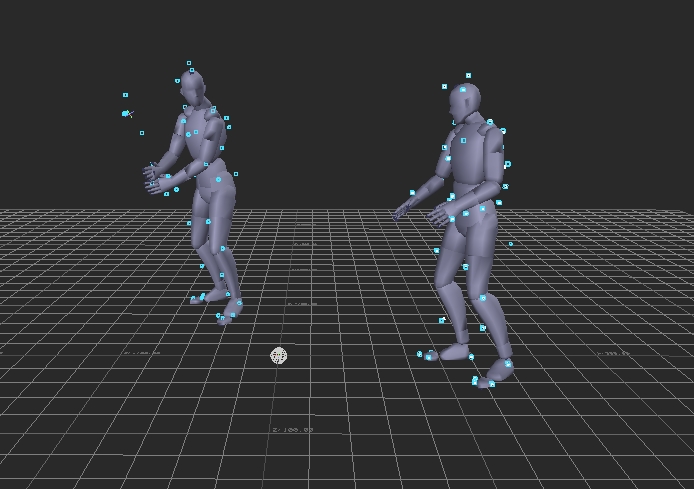

A Motive Body license can export tracking data into FBX files for use in other 3D pipelines. There are two types of FBX files: Binary FBX and ASCII FBX.

Notes for MotionBuilder Users

  • When exporting tracking data into MotionBuilder in the FBX file format, make sure the exported frame rate is supported in MotionBuilder (Mobu). In Mobu, there is a select set of playback frame rates that are supported, and the rate of the exported FBX file must agree in order to play back the data properly.

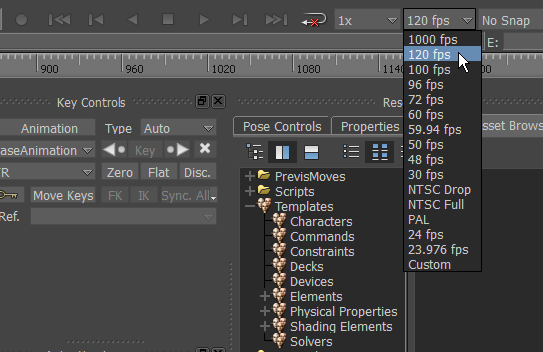

  • If there is a non-standard frame rate selected that is not supported, the closest supported frame rate is applied.

FBX ASCII

Exported FBX files in ASCII format can contain reconstructed marker coordinate data as well as 6 Degree of Freedom data for each involved asset depending on the export setting configurations. ASCII files can also be opened and edited using text editor applications.

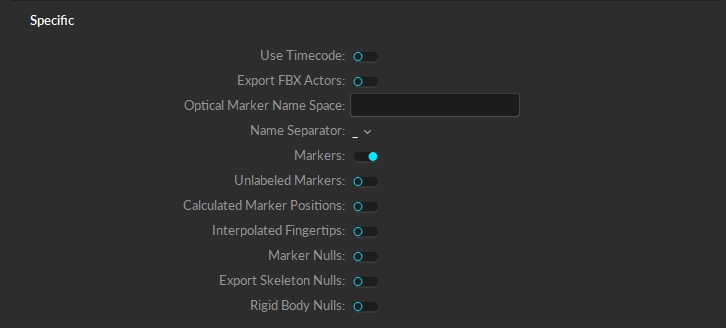

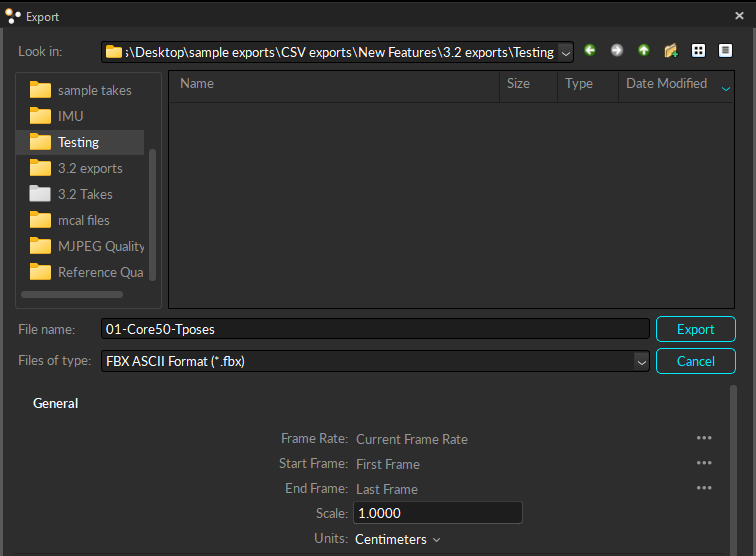

FBX ASCII Export Options

Frame Rate

Number of samples included per every second of exported data.

Start Frame

End Frame

Scale

Apply scaling to the exported tracking data

Units

Set the unit in exported files.

Use Timecode

Includes timecode.

Export FBX Actors

Includes FBX Actors in the exported file. Actor is a type of asset used in animation applications (e.g. MotionBuilder) to display imported motions and connect to a character. In order to animate exported actors, associated markers will need to be exported as well.

Skeleton Names

Select which skeletons will be exported: All skeletons, selected skeletons, or custom. The custom option will populate the selection field with the names of all the skeletons in the Take. Remove the names of the skeletons you do not wish to include in your export. Names must match the names of actual skeletons in the Take to export. Note: This field is only visible if Export FBX Actors is selected.

Optical Marker Name Space

Overrides the default name spaces for the optical markers.

Name Separator

Choose ":" or "_" for marker name separator. The name separator will be used to separate the asset name and the corresponding marker name when exporting the data (e.g. AssetName:MarkerLabel or AssetName_MarkerLabel). When exporting to Autodesk MotionBuilder, use "_" as the separator.

Markers

Exports each marker's coordinates.

Unlabeled Markers

Includes unlabeled markers.

Calculated Marker Positions

Export asset's constraint marker positions as the optical marker data.

Interpolated Fingertips

Includes virtual reconstructions at the fingertips. Available only with Skeletons that support finger tracking.

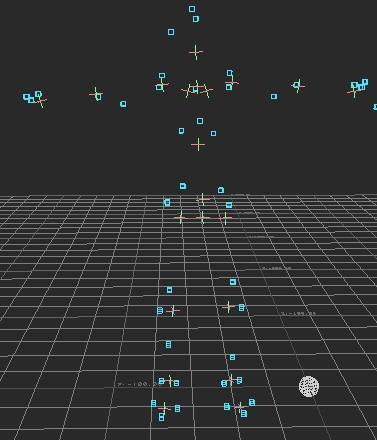

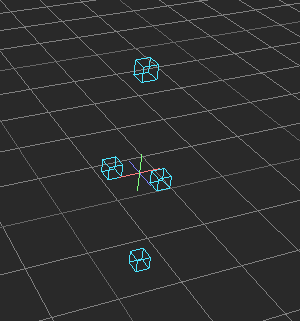

Marker Nulls

Exports the location of each marker.

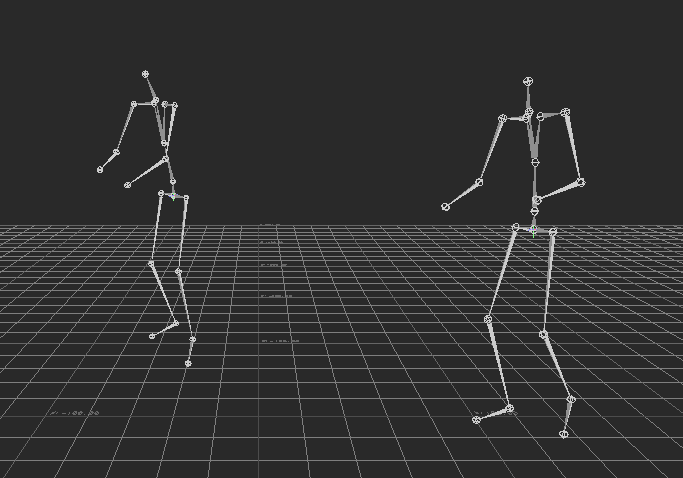

Export Skeleton Nulls

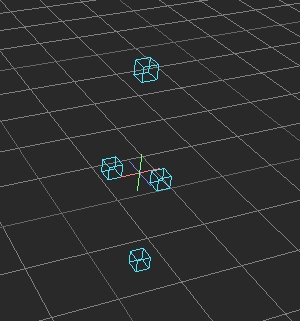

Rigid Body Nulls

FBX Binary

Binary FBX files are more compact than ASCII FBX files. Reconstructed 3D marker data is not included within this file type, but selected Skeletons are exported by saving corresponding joint angles and segment lengths. For Rigid Bodies, positions and orientations at the defined Rigid Body origin are exported.

Tips for Exporting Skeletons

  • Make sure Individual Assets is selected when using the Remove Bone Name Prefixes option to export multiple skeletons, otherwise only one skeleton will be exported.

  • To include fingertips as nulls (Locators) in the export, the skeleton must contain hand bones. Select the following export options to export this data:

    • Marker Nulls

    • Unlabeled Markers

    • Interpolated Finger Tips

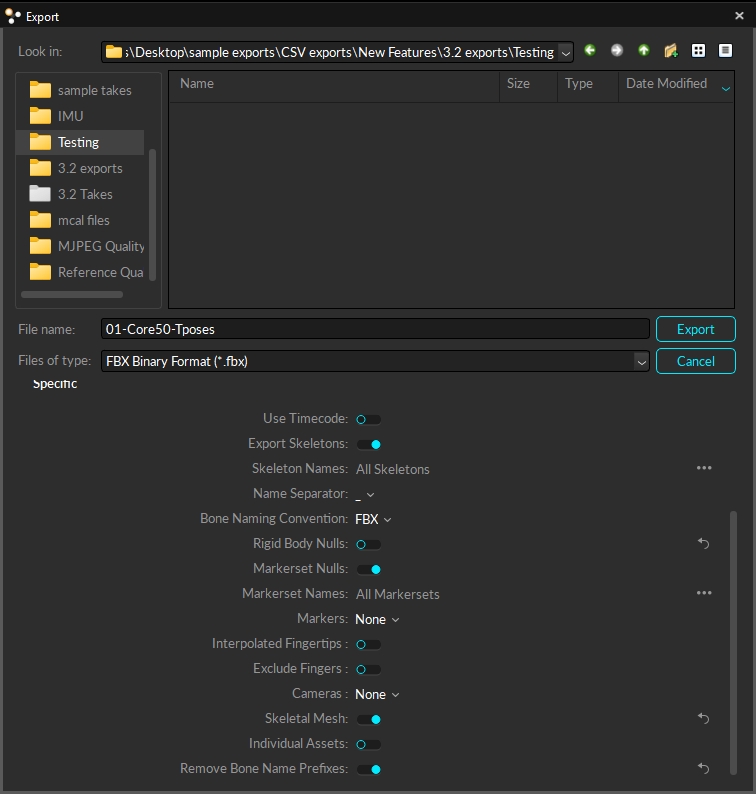

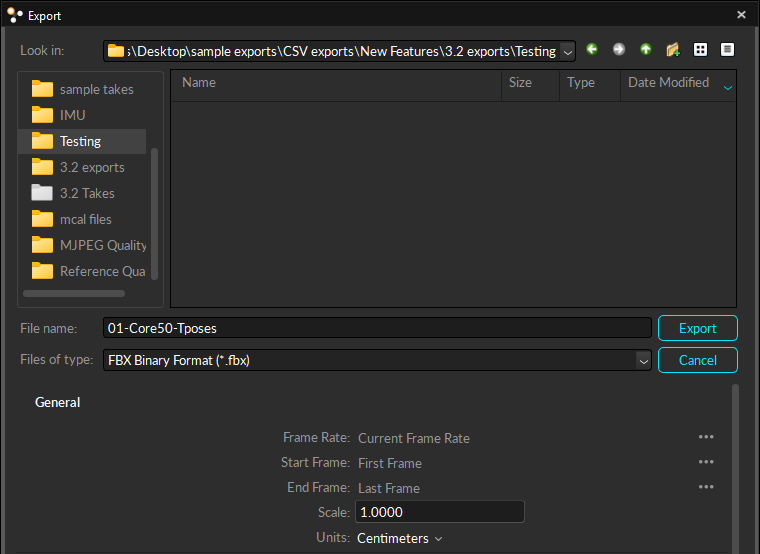

FBX Binary Export Options

Frame Rate

Number of samples included per every second of exported data.

Start Frame

End Frame

Scale

Apply scaling to the exported tracking data.

Units

Sets the unit for exported segment lengths.

Use Timecode

Includes timecode.

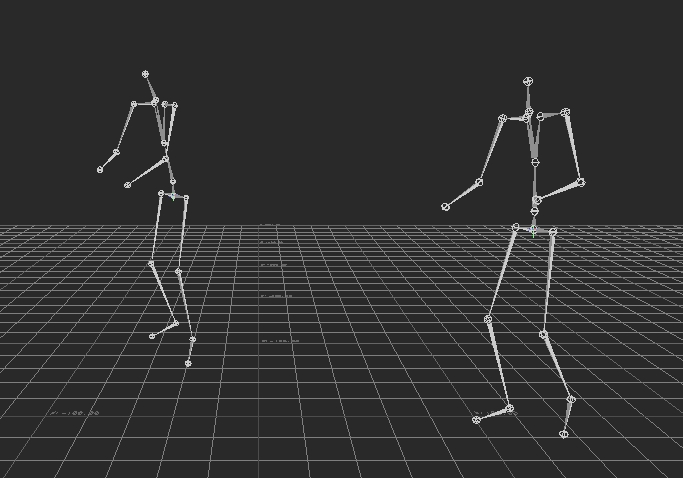

Export Skeletons

Skeleton Names

Select which skeletons will be exported: All skeletons, selected skeletons, or custom. The custom option will populate the selection field with the names of all the skeletons in the Take. Remove the names of the skeletons you do not wish to include in your export. Names must match the names of actual skeletons in the Take to export.

Name Separator

Choose ":" or "_" for marker name separator. The name separator will be used to separate the asset name and the corresponding marker name when exporting the data (e.g. AssetName:MarkerLabel or AssetName_MarkerLabel). When exporting to Autodesk Motion Builder, use "_" as the separator.

Bone Naming Convention

Select Motive, FBX, or UnrealEngine.

Rigid Body Nulls

Rigid Body Names

Names of the Rigid Bodies to export into the FBX binary file as 6 DoF nulls.

Markerset Nulls

Markerset Names

Select which markersets will be exported: All markersets, selected markersets, or custom. The custom option will populate the selection field with the names of all the markersets in the Take. Remove the names of the markersets you do not wish to include in your export. Names must match the names of actual markersets in the Take to export.

Markers

Markers can be exported as Opticals or Nulls. The export of Markers must be enabled to export interpolated finger tip data.

  • Opticals exports marker data in a format that includes animation data such as constraints information. Select this option when exporting for animation in MotionBuilder.

  • Nulls exports the location of each marker.

When either option is selected, additional options become available:

Unlabeled Markers

Includes unlabeled markers. This setting must be enabled to export interpolated finger tip data.

Move Gaps to Origin

MotionBuilder interpolates marker gaps, which includes unwanted frame data in some pipelines. This option facilitates the removal of gaps by moving them to the origin, where the user simply deletes any marker in every frame where it is at the origin of the world.

Interpolated Fingertips

Includes virtual reconstructions at the fingertips. Available only with Skeletons that support finger tracking. Both Marker Nulls and Unlabeled Markers must be enabled also.

Exclude Fingers

When set to true, exported skeletons will not include the fingers, if they are tracked in the Take file.

Cameras

Select the cameras to include in your export. Options are All Color Cameras, All Cameras, or none (default).

Skeleton Stick Mesh

Select this option if exporting to a game engine that requires an FBX mesh asset to apply tracked skeletons to other characters for retargeting purposes.

Individual Assets

Exports the data for each asset into a separate file.

Remove Bone Name Prefixes

Removes the skeleton name prefix from the bones to create skeletons that are easily retargetable and interchangeable. Use when exporting into Unreal Engine.

For more information, please visit site.

Autodesk has discontinued support for FBX ASCII import in MotionBuilder 2018 and above. For alternatives when working in MotionBuilder, please see the page.

Start frame of the exported data. You can set it to the recorded first frame of the exported Take (the default option), to the start of the working range (or scope range), as configured under the or in the , or select Custom to enter a specific frame number.

End frame of the exported data. You can set it to the recorded end frame of the exported Take (the default option), to the end of the working range (or scope range), as configured under the of in the , or select Custom to enter a specific frame number.

Can only be exported when is recorded for exported Skeleton assets. Exports 6 Degree of Freedom data for every bone segment in selected Skeletons.

Can only be exported when is recorded for exported Rigid Body assets. Exports 6 Degree of Freedom data for selected Rigid Bodies. Orientation axes are displayed on the geometrical center of each Rigid Body.

Start frame of the exported data. You can set it to the recorded first frame of the exported Take (the default option), to the start of the working range (or scope range), as configured under the or in the , or select Custom to enter a specific frame number.

End frame of the exported data. You can set it to the recorded end frame of the exported Take (the default option), to the end of the working range (or scope range), as configured under the of in the , or select Custom to enter a specific frame number.

Export Skeleton nulls. Please note that the must be recorded for Skeleton bone tracking data to be exported. It exports 6 Degree of Freedom data for every bone segment in exported Skeletons.

Can only be exported when is recorded for exported Rigid Body assets. Exports 6 Degree of Freedom data for selected Rigid Bodies. Orientation axes are displayed on the geometrical center of each Rigid Body.

Can only be exported when is recorded for exported trained markerset assets. Exports 6 Degree of Freedom data for selected assets. Orientation axes are displayed on the geometrical center of each markerset.

Autodesk Motionbuilder's Documentation Support
Autodesk MotionBuilder: OptiTrack Optical Plugin
Control Deck
Graph View pane
Control Deck
Graph View pane
Control Deck
Graph View pane
Control Deck
Graph View pane
solved data
solved data
solved data
solved data
solved data
Mobu supported playback framerates.
FBX ASCII Format export - General options.
FBX ASCII Format export - Specific options.
Exported skeletons.
A hand with tracked bones.
