  1. GENERAL TROUBLESHOOTING

Licensing Troubleshooting

Common licensing problems and how to address them.

PreviousGENERAL TROUBLESHOOTINGNextWindows 11 Optimization for Realtime Applications

Was this helpful?

Common Licensing Issues

Issues with licensing can prevent the operation of Motive. This list identifies possible causes for various licensing errors that can occur, and how to resolve them.

License File Location

The Motive license folder is located at C:\ProgramData\OptiTrack\License. You can also open the License folder using the link on the Motive splash screen.

License Not Found

There are several potential causes when the License not found message appears.

License File Did Not Download After Activating


License is Registered to a Different USB Key

Check the license folder. The license file name contains the 6-digit serial number of the USB key associated with it. Confirm the number matches the serial number on the USB key. If the key and the license are mismatched, contact support.


Initial License for a Maintenance License isn't in the License Folder

Maintenance Licenses extend the term of the license purchased with the OptiTrack system, which is referred to as the Initial License. For a maintenance license to work, both it and the initial license must be in the Motive license folder.

Check the license folder. The name of the license file will indicate whether the license is an initial or maintenance license.

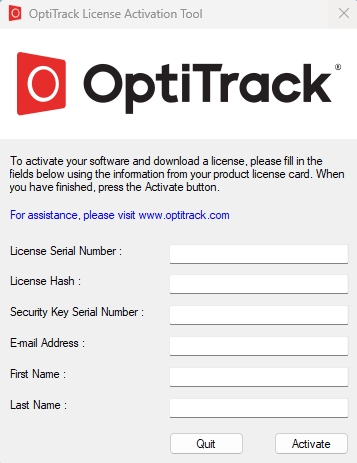

If the Initial License is missing, use the License Activation Tool to download it again. You will need the licensing information provided on the License card when the system was purchased to do so. This will download the initial license and all associated maintenance licenses.

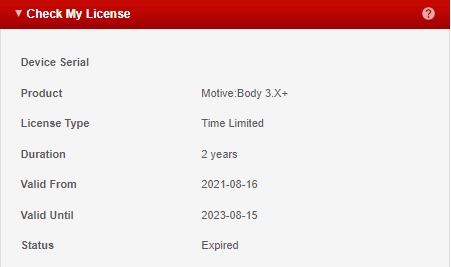

The Version Downloaded was Released After the License Maintenance Period Ended

Expand the Details & Requirements section for any release to see the license effective date.

Motive release dates are also shown at-a-glance on the list of Changelogs:


Wrong USB Key for the Version of Motive Installed

USB Security Keys work with Motive 3.x, USB Hardware Keys work with Motive 2.x.


Multiple Initial licenses in the License Folder

Check the license folder and move or delete either the oldest license or the one that is not needed.


USB Key is not detected

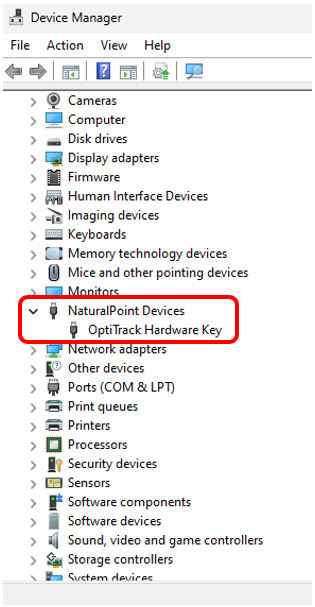

If Motive does not detect the USB security key, check Windows Device Manager to see if the key is recognized by Windows.

  • Type Device Manager in the Windows Search bar to find and open the Device Manager.

  • Expand the list of Human Interface Devices.

  • The OptiTrack security key is listed as an HID-compliant vendor-defined device. There will likely be several of these on a user's system. If the security key is recognized by Windows, it is often the first in the list.

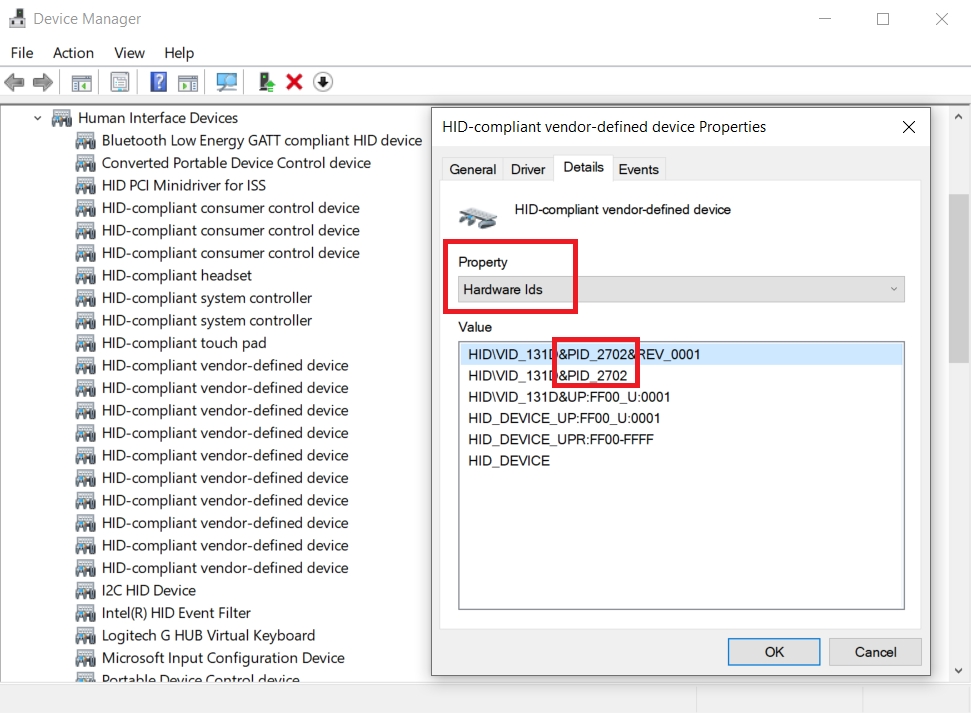

  • To identify a key that is plugged in and recognized as a security key, open the Device Properties and select the Details tab.

  • Select the Hardware Ids property. If the device is a security key, The first two values will begin with HID\VID_131D&PID_2702.

Security Key Requires a Driver Update

USB Key is not Plugged in Properly

If the USB security key is not listed, try reconnected the device or using a different USB port. Use a port on the back of the PC if one of the ports on the front doesn't work.


USB Key is Broken


License Activated but Motive Doesn't Open

  • Check the license folder to verify the license has been downloaded.

  • Verify that the version of Motive installed is the correct version for the license. Install the correct version if necessary. Previous versions of Motive can be found under "Previous Releases" on the Download page.

  • Disable any firewall or antivirus software and launch Motive with administrative privileges.

  • Contact support if the issue persists after completing these troubleshooting steps.

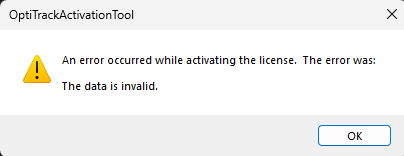

License won't Activate with the Online License Tool

  • Check your data entry. In addition to typos, look for additional characters such as a space at the beginning or end of the sequence.

  • Use the license tool from the Motive splash screen instead of the online license tool:

  • Only one license (initial or maintenance) can be activated at a time. Subsequent Maintenance licenses are activated when the prior maintenance period ends.

  • Two USB keys are plugged in. Only one USB key can be connected at a time.


Demo License

Support may authorize the use of a demo license at various times. Demo licenses are linked to a specific computer and require the computer's Machine ID to activate.

Once permission is granted, send your First Name, Last Name, Email, and Machine ID to Support:

  • Download and install the version of Motive that corresponds to the demo license.

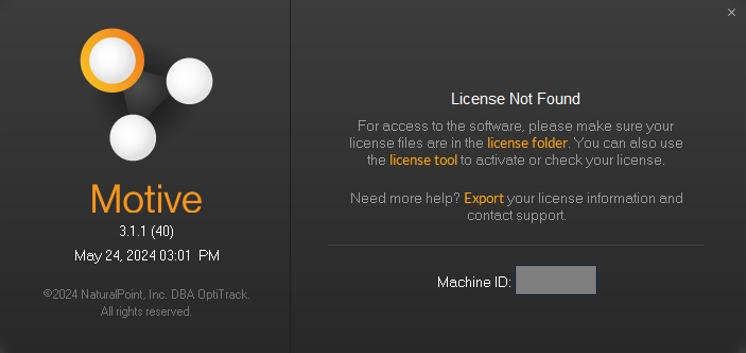

  • Launch Motive. Click About Motive window from the splash page.

  • The Machine ID is displayed at the bottom:

  • Support will send the license file via email. Check your spam filter and junk folder if it does not arrive on a timely basis.

  • Download and save the demo license (.dat file) attached to the email to the license folder: (C:\ProgramData\OptiTrack\License).

Check the license folder. If there is no license file in the folder, download it by running the License Activation Tool, available on the Motive splash page. Alternately, you can run the tool from C:\Program Files\OptiTrack\Motive\LicenseTool, or from the .

for your initial license information if you are unable to find it.

Use the "Check My License" tool at the bottom of the online license tool on the to verify the end date of the license maintenance period.

On the page, find the version of Motive that was valid before the license maintenance period ended. Click to expand the Previous Releases section for either 3.x.x or 2.x.x, depending on which license you have.

If an error symbol is displayed next to the device in Device Manager, the USB driver needs an update. to update the driver.

to purchase a new key. Once received, contact support to complete the transfer of the license to the new key.

Ensure the computer meets the to run Motive; upgrade as necessary.

The online License Tool is available on the page.

OptiTrack Support page
Contact support
Support page
downloads
Contact support
Contact support
OptiTrack Support
minimum hardware requirement
Error message when launching Motive without a valid license.
Check my License results for an expired license.
Click to see previous releases.
Motve 3.x changelogs and release dates.
Security key in the list of Human Interface devices.
Error while attempting to activate a license.
Access the License Tool from the splash screen.
The License Activation Tool from the Motive splash screen.
the About Motive screen.
