  1. MOTIVE UI PANES

Edit Tools Pane

PreviousDevices PaneNextGraph View Pane

Was this helpful?

In Motive, the Edit Tools pane can be accessed under the or by clicking icon on the main toolbar.

The Edit Tools pane contains the functionality to modify 3D data. Four main functions exist: trimming trials, filling gaps, smoothing trajectories and swapping data points. Trimming trials refers to the clearing of data points before and after a gap. Filling gaps is the process of filling in a markers trajectory for each frame that has no data. Smoothing trajectories filters out unwanted noise in the signal. Swapping allows two markers to swap their trajectories.

Read through the page to learn about utilizing the edit tools.

Tails

Leading/Trailing Frames

Default: 3 frames. The Trim Size Leading/Trailing defines how many data points will be deleted before and after a gap.

Smart Trim

Default: OFF. The Smart Trim feature automatically sets the trimming size based on trajectory spikes near the existing gap. It is often not needed to delete numerous data points before or after a gap, but there are some cases where it's useful to delete more data points in case jitters are introduced from the occlusion. When enabled, this feature will determine whether each end of the gap is suspicious with errors, and delete an appropriate number of frames accordingly. Smart Trim feature will not trim more frames than the defined Leading and Trailing value.

Minimum segment size

Default: 5 frames. The Minimum Segment Size determines the minimum number of frames required by a trajectory to be modified by the trimming feature. For instance, if a trajectory is continuous only for a number of frames less than the defined minimum segment size, this segment will not be trimmed. Use this setting to define the smallest trajectory that gets.

Gap size threshold

Default: 2 frames. The Gap Size Threshold defines the minimum size of a gap that is affected by trimming. Any gaps that are smaller than this value are untouched by the trim feature. Use this to limit trimming to only the larger gaps. In general it is best to keep this at or above the default, as trimming is only effective on larger trajectories.

Gaps

Previous

Automatically search through the selected trajectory and highlights the range and moves the cursor to the center of a gap before the current frame.

Next

Automatically search through the selected trajectory and highlights the range and moves the cursor to the center of a gap after the current frame.

Fill All

Fills all gaps in the current TAK. If you have a specific frame range selected in the timeline, only the gaps within the selected frame range will be filled.

Interpolation Type

Maximum Gap Size

The maximum size, in frames, that a gap can be for Motive to fill. Raising this will allow larger gaps to be filled. However, larger gaps may be more prone to incorrect interpolation.

Target

Curves

Smooth All

Applies smoothing to all frames on all tracks of the current selection in the timeline.

Max. Freq (Hz)

Determines how strongly your data will be smoothed. The lower the setting, the more smoothed the data will be. High frequencies are present during sharp transitions in the data, such as footplants, but can also be introduced by noise in the data. Commonly used ranges for Filter Cutoff Frequency are 6-12 Hz, but you may want to adjust that up for fast, sharp motions to avoid softening transitions in the motion that need to stay sharp.

Fragments

Delete

Delete all trajectories within the selected frame range that have frames less then the percentage defined in the settings.

Marker with less than

For all trajectories that have frames shorter than the percentage defined in this setting will be deleted.

Swaps

Previous

Jumps to the most recent detected marker swap.

Next

Jumps to the next detected marker swap.

Marker1 and Marker2

Select the markers to be swapped.

Swap Direction

Choose the direction, from the current frame, to apply the swap

Swap

Swaps the two markers selected in the Markers to Swap

Sets which interpolation method to be used. Available patterns are constant, linear, cubic, pattern-based, and model-based. For more information, read page

When using the interpolation to fill gaps on a marker's the trajectory, Other reference markers are selected alongside the target marker to interpolate. This Fill Target drop-down menu specifies which marker among the selected markers to set as the target marker to perform the pattern-base interpolation.

Data Editing
pattern-base
Data Editing
View tab

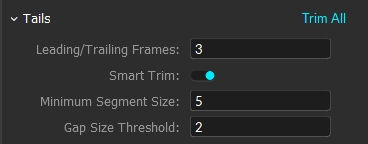

Trim Tails section on the Edit Tools pane.
Gaps section under the Edit Tools pane.
Curves function under Edit Tools.
Editor Tools showing fragments method.

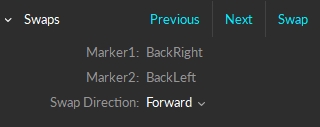

Editor Tools showing Swap Fix Tab.
