  1. MOTIVE

Rigid Body Tracking

PreviousGizmo Tool: Translate, Rotate, and ScaleNextAligning Rigid Body Pivot Point with a Replicated 3D Model

Last updated 2 years ago

Was this helpful?

In Motive, Rigid Body assets are used for tracking rigid, unmalleable, objects. A set of markers get securely attached to tracked objects, and respective placement information gets used to identify the object and report 6 Degree of Freedom (6DoF) data. Thus, it's important that the distances between placed markers stay the same throughout the range of motion. Either passive retro-reflective markers or active LED markers can be used to define and track a Rigid Body. This page details instructions on how to create rigid bodies in Motive and other useful features associated with the assets.

Rigid Body Marker Placement

A Rigid Body in Motive is a collection of three or more markers on an object that are interconnected to each other with an assumption that the tracked object is unmalleable. More specifically, it assumes that the spatial relationship among the attached markers remains unchanged and the marker-to-marker distance does not deviate beyond the allowable tolerance defined under the corresponding Rigid Body properties. Otherwise, involved markers may become . Cover any reflective surfaces on the Rigid Body with non-reflective materials, and attach the markers on the exterior of the Rigid Body where cameras can easily capture them.

Tip: If you wish to get more accurate 3D orientation data (pitch, roll, and yaw) of a Rigid Body, it is beneficial to spread markers as far as you can within the same Rigid Body. By placing the markers this way, any slight deviation in the orientation will be reflected from small changes in the position.

Number of Markers

In a 3D space, a minimum of three coordinates is required for defining a plane using vector relationships; likewise, at least three markers are required to define a Rigid Body in Motive. Whenever possible, it is best to use 4+ markers to create a Rigid Body. Additional markers provide more 3D coordinates for computing positions and orientations of a rigid body, making overall tracking more stable and less vulnerable to marker occlusions. When any of markers are occluded, Motive can reference to other visible markers to solve for the missing data and compute position and orientation of the rigid body.

However, placing too many markers on one Rigid Body is not recommended. When too many markers are placed in close vicinity, markers may overlap on the camera view, and Motive may not resolve individual reflections. This may increase the likelihood of label-swaps during capture. Securely place a sufficient number of markers (usually less than 10) just enough to cover the main frame of the Rigid Body.

Tip: The recommended number of markers per a Rigid Body is 4 ~ 12 markers. Rigid Body cannot be created with more than 20 markers in Motive.

Asymmetrical Marker Placements

Within a Rigid Body asset, its markers should be placed asymmetrically because this provides a clear distinction of orientations. Avoid placing the markers in symmetrical shapes such as squares, isosceles, or equilateral triangles. Symmetrical arrangements make asset identification difficult, and they may cause the Rigid Body assets to flip during capture.

Unique Marker Placements

When tracking multiple objects using passive markers, it is beneficial to create unique Rigid Body assets in Motive. Specifically, you need to place retroreflective markers in a distinctive arrangement between each object, and it will allow Motive to more clearly identify the markers on each Rigid Body throughout capture. In other words, their unique, non-congruent, arrangements work as distinctive identification flags among multiple assets in Motive. This not only reduces processing loads for the Rigid Body solver, but it also improves the tracking stability. Not having unique Rigid Bodies could lead to labeling errors especially when tracking several assets with similar size and shape.

Note for Active Marker Users

What Makes Rigid Bodies Unique?

The key idea of creating unique Rigid Body is to avoid geometrical congruency within multiple Rigid Bodies in Motive.

  • Unique Marker Arrangement. Each Rigid Body must have a unique, non-congruent, marker placement creating a unique shape when the markers are interconnected.

  • Unique Marker-to-Marker Distances. When tracking several objects, introducing unique shapes could be difficult. Another solution is to vary Marker-to-marker distances. This will create similar shapes with varying sizes, and make them distinctive from the others.

  • Unique Marker Counts Adding extra markers is another method of introducing the uniqueness. Extra markers will not only make the Rigid Bodies more distinctive, but they will also provide more options for varying the arrangements to avoid the congruency.

What Happens When Rigid Bodies Are Not Unique?

Multiple Rigid Bodies Tracking

Depending on the object, there could be limitations on marker placements and number of variations of unique placements that could be achieved. The following list provides sample methods for varying unique arrangements when tracking multiple Rigid Bodies.

1. Create Distinctive 2D Arrangements. Create distinctive, non-congruent, marker arrangements as the starting point for producing multiple variations, as shown in the examples above.

2. Vary heights. Use marker bases or posts, with different heights to introduce variations in elevation to create additional unique arrangements.

3. Vary Maximum Marker to Marker Distance. Increase or decrease the overall size of the marker arrangements.

4. Add Two (or more) Markers Lastly, if an additional variation is needed, add extra markers to introduce the uniqueness. We recommended adding at least two extra markers in case any of them is occluded.

Creating Rigid Body

A set of markers attached to a rigid object can be grouped and auto-labeled as a Rigid Body. This Rigid Body definition can be utilized in multiple takes to continuously auto-label the same Rigid Body markers. Motive recognizes the unique spatial relationship in the marker arrangement and automatically labels each marker to track the Rigid Body. At least three coordinates are required to define a plane in 3D space, and therefore, a minimum of three markers are essential for creating a Rigid Body.

Steps to Create Rigid Bodies

Step 1.

Step 2.

On the Builder pane, confirm that the selected markers match the markers that you wish to define the Rigid Body from.

Step 3.

Click Create to define a Rigid Body asset from the selected markers.

You can also create a Rigid Body by doing the following actions while the markers are selected:

  • Perspective View (3D viewport): While the markers are selected, right-click on the perspective view to access the context menu. Under the Rigid Body section, click Create From Selected Markers.

  • Hotkey: While the markers are selected, use the create Rigid Body hotkey (Default: Ctrl +T).

Step 4.

Defining Assets in Edit mode:

Rigid Body Properties

Default Properties

Modifying Properties

Adding or Removing Markers

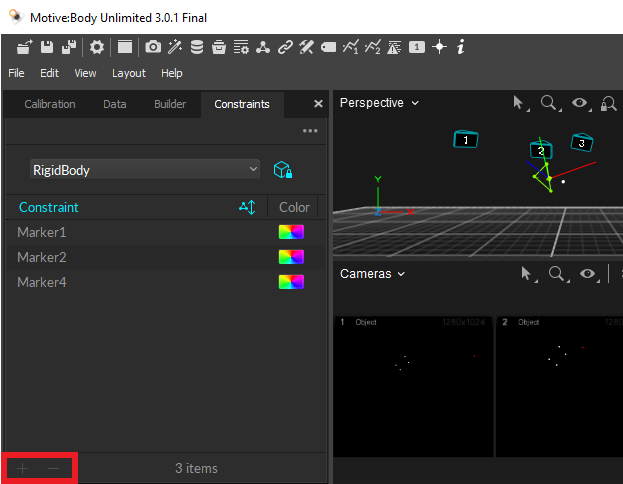

You can add or remove Marker Constraints from a Rigid Body in the Constraints pane.

To add a marker you can select the marker in the Perspective view and make sure an existing Rigid Body is selected from the dropdown in the Constraints pane.

Once selected you can click the '+' in the Constraints pane to add the marker to the Rigid Body.

To remove a marker from the Rigid Body, simply select the marker in the Constraints pane and click '-'.

Tracking Rigid Body

Real-time Information

Default Orientation

Adjusting Rigid Body Pivot Point

Using the Gizmo Tool

Using the gizmo tools from the perspective view options to easily modify the position and orientation of Rigid Body pivot points. You can translate and rotate Rigid Body pivot, assign pivot to a specific marker, and/or assign pivot to a mid-point among selected markers.

  • Select Tool (Hotkey: Q): Select tool for normal operations.

  • Translate Tool (Hotkey: W): Translate tool for moving the Rigid Body pivot point.

  • Rotate Tool (Hotkey: E): Rotate tool for reorienting the Rigid Body coordinate axis.

  • Scale Tool (Hotkey: R): Scale tool for resizing the Rigid Body pivot point.

Translating Pivot Point

Resetting the Pivot Point

Pivot for Spherical Placement

Rigid Body Tracking Data Output


Rigid Body tracking data can be either outputted onto a separate file or streamed to client applications in real-time:

Additional Features

Export Asset Definitions

When the asset definition(s) is exported to a MOTIVE user profile, it stores marker arrangements calibrated in each asset, and they can be imported into different takes without creating a new one in Motive. Note that these files specifically store the spatial relationship of each marker, and therefore, only the identical marker arrangements will be recognized and defined with the imported asset.

To export the assets, go to Files tab → Export Assets to export all of the assets in the Live-mode or in the current TAK file. You can also use Files tab → Export Profile to export other software settings including the assets.

Rigid Body Refinement

This feature is supported in _Live Mode_** only.**

This feature is supported in _Live Mode_** only.**

The Rigid Body refinement tool improves the accuracy of Rigid Body calculation in Motive. When a Rigid Body asset is initially created, Motive references only a single frame for defining the Rigid Body definition. The Rigid Body refinement tool allows Motive to collect additional samples in the live mode for achieving more accurate tracking results. More specifically, this feature improves the calculation of expected marker locations of the Rigid Body as well as the position and orientation of the Rigid Body itself.

Steps

  1. Select the Rigid Bodies from the Type dropdown menu.

  2. Hold the physical selected Rigid Body at the center of the capture volume so that as many cameras as possible can clearly capture the markers on the Rigid Body.

  3. Slowly rotate the Rigid Body to collect samples at different orientations until the progress bar is full.

  4. Once all necessary samples are collected, the Refine and Create + Refine buttons will appear again in the Builder pane and the refinements will have been applied.

If you are using for tracking multiple Rigid Bodies, it is not required to have unique marker placements. Through the active labeling protocol, active markers can be labeled individually and multiple rigid bodies can be distinguished through uniquely assigned marker labels. Please read through page for more information.

Having multiple non-unique Rigid Bodies may lead to mislabeling errors. However, in Motive, non-unique Rigid Bodies can also be tracked fairly well as long as the non-unique Rigid Bodies are continuously tracked throughout capture. Motive can refer to the trajectory history to identify and associate corresponding Rigid Bodies within different frames. In order to track non-unique Rigid Bodies, you must make sure the Properties → General Settings → Unique setting in of the assets are set to False.

Even though it is possible to track non-unique Rigid Bodies, it is strongly recommended to make each asset unique. Tracking of multiple congruent Rigid Bodies could be lost during capture either by occlusion or by stepping outside of the capture volume. Also, when two non-unique Rigid Bodies are positioned in vicinity and overlap in the scene, their marker labels may get swapped. If this happens, additional efforts will be required for in post-processing of the data.

Select all associated Rigid Body markers in the .

Assets pane: While the markers are selected in Motive, click on the add button in the .

Once the Rigid Body asset is created, the markers will be colored (labeled) and interconnected to each other. The newly created Rigid Body will be listed under the .

If the Rigid Bodies, or skeletons, are created in the Edit mode, the corresponding Take needs to be . Only then, the Rigid Body markers will be labeled using the Rigid Body asset and positions and orientations will be computed for each frame. If the 3D data have not been labeled after edits on the recorded data, the asset may not be tracked.

Rigid Body properties consist of various configurations of Rigid Body assets in Motive, and they determine how Rigid Bodies are tracked and displayed in Motive. For more information on each property, read through the page.

When a Rigid Body is first created, default Rigid Body properties are applied to the newly created assets. The default creation properties are configured under the Assets section in the panel.

Properties for existing Rigid Body assets can be changed from the .\

The pivot point of a Rigid Body is used to define both position and orientation. When a rigid body is created, its pivot point is be placed at its geometric center by default, and its orientation axis will be aligned with the global coordinate axis. To view the pivot point and the orientation in the 3D viewport, set the Bone Orientation to true under the display settings of a selected Rigid Body in the .

Position and orientation of a tracked Rigid Body can be monitored in real-time from the . You can simply select a Rigid Body in Motive, open the Info pane, and access the Rigid Bodies tool from the to view respective real-time tracking data of the selected Rigid Body.

As mentioned previously, the orientation axis of a Rigid Body, by default, gets aligned with the global axis when the Rigid Body was first created. After a Rigid Body is created, its orientation can be adjusted by editing the Rigid Body orientation using the or by using the GIZMO tools as described in the next section.

There are situations where the desired pivot point location is not at the center of a Rigid Body. The location of a pivot point can be adjusted by assigning it to a marker or by translating along the Rigid Body axis (x,y,z). For most accurate pivot point location, attach a marker on the desired pivot location, set the pivot point to the marker, and apply the translation for precise adjustments. If you are adjusting the pivot point after the capture, in the Edit mode, the Take will need to be again to apply the changes.

Read through the page for detailed information.

To translate the pivot point, access the Rigid Body editing tools in the while the Rigid Body is selected. In the Location section, you can input the amount of translation (in mm) that you wish to apply. Note that the translation will be applied along the x/y/z of the Rigid Body orientation axis. Resetting the translation will position the pivot point at the geometric center of the Rigid Body according to its marker positions.

If you wish to reset the pivot point, simply open the Rigid Body context menu in the and click Reset Pivot. The location of the pivot point will be reset back to the center of the Rigid Body again.

This feature is useful when tracking a spherical object (e.g. ball). The Spherical Pivot Placement feature in the Builder pane will assume that all the Rigid Body markers are placed on the surface of a spherical object, and the pivot point will be calculated and re-positioned accordingly. To do this, select a Rigid Body, access Modify tab in the , and click Apply from the Spherical Pivot Placement.

Captured 6 DoF Rigid Body data can be exported into CSV, FBX, or BVH files. See:

You can also use one of the streaming plugins or use NatNet client applications to receive tracking data in real-time. See:

Assets can be exported into Motive user profile (.MOTIVE) file if it needs to be re-imported. The is a text-readable file that can contain various configuration settings in Motive; including the asset definitions.

Select from the toolbar at the top, open the .

In , select an existing Rigid Body asset that you wish to refine from the Assets pane.

Click Refine in the .

OptiTrack active markers
Active Marker Tracking
Rigid Body Properties
correcting the labels
Assets pane
auto-labeled
Properties: Rigid Body
Application Settings
Properties pane
Properties pane
Builder pane
auto-labeled
Gizmo tools
Builder pane
Builder pane
Data Export
NatNet SDK
Builder pane
deflection
unlabeled
Assets pane
Info pane
Builder pane
ContextMenu dotdotdot.png
3D viewport
Perspective pane
user profile
Live mode
View
Retroreflective markers placed on a quadrocopter
The corresponding rigid body defined in Motive
Creating a Rigid Body from the Assets pane. Properties for the selected asset is described on the Properties pane.
Creating a Rigid Body from selected markers (4) using the right-click context menu.
Rigid Body defined from the selected markers.
Creating a Rigid Body
Properties of a selected Rigid Body under the Properties pane.
Rigid Body real-time information shown in the Info pane. The position is represented in respect to the global origin, and the orientation is represented in respect to the initial orientation when the Rigid Body was created.
Gizmo tool options can be selected from the perspective viewport.
Using the gizmo tool to adjust pivot orientation.
Exporting Assets into the User Profile.
Exporting user profile that includes assets. This dialogue window is from the Export Profile As... option.
Click an asset in the Assets pane to highlight the Refine button in the Builder pane
Refinement progress bar.
