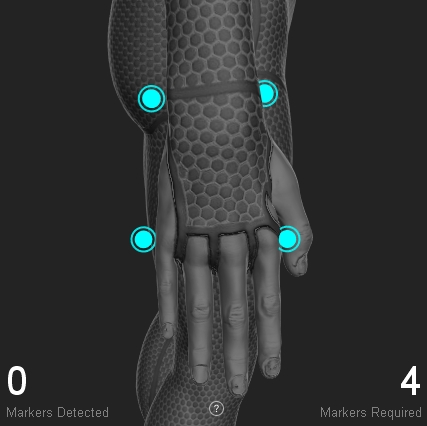

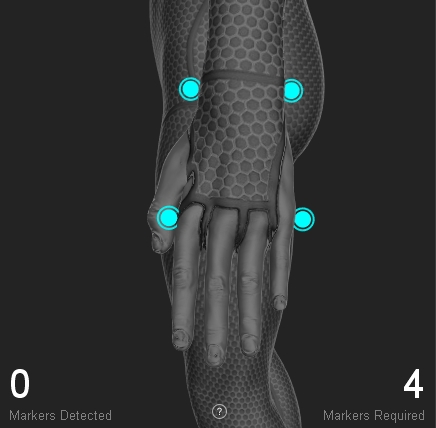

Left/Right Hand (4) Active

Left Hand Marker Set
Right Hand Marker Set

Hand + Finger Markers

Label
Related Segment
Description

LWristOut RWristOut

Fore Arm / Hand

Place the marker on the outside (lateral side) of the wrist axis. (distal end of the radius bone). Note that the wrist axis is not always located on the protruding bone but 1-2 cm more towards the hand.

LWristIn RWristIn

Fore Arm / Hand

Place the marker on the inner prominence (medial side) of the wrist axis (distal end of the ulnar bone).

LHandOut RHandOut

Hand

Place the marker slightly below the pinky knuckle. More specifically, between distal end of the fifth and fourth metacarpal bones.

LHandIn RHandIn

Hand

Place the marker slightly below the forefinger knuckle. More specifically, between distal end of the second metacarpal bones.
